SEO – Phoenix Mini Contact Angle Analyzer

Phoenix Mini Brochure

Overview

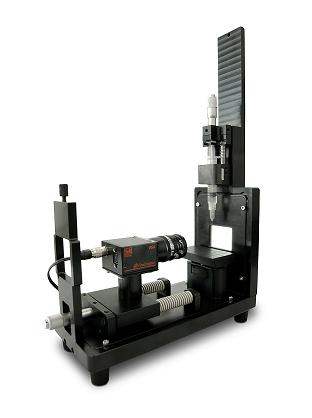

The Phoenix Mini is specially developed with small footprint ideally for QA/QC work.  Phoenix Mini portability combined with ease of measurement is ideal for routine measurement for surface treatment and cleanliness studies.  The Phoenix Mini has a pre-aligned fixed optical system that eliminates the need to make focus adjustment.  The liquid is dispensed using a precise manual system for small drop volume and with interchangeable tip size.  The backlight system employed by the Phoenix Mini is designed to improve image quality which helps contact angle analysis.

Features

• Precise contact angle measurements from 0 ⁰ to 180⁰
• Convenient operation and portability via IEE1394 or USN communication
• Auto calculation of contact angle & surface energy
• Easy and simple operation
• Static and Dynamic contact angle
• Advancing and Receding Contact angle by Captive method
• Sequence image capture by time basis & dynamic movies
• Sessile Drop | Pendant Drop Surface Tension
• Semiconductor applications
• Detection of organic contamination on PCB and electronic components
• Evaluation of cleanliness / treatment / coating processing
• Hydrophobicity and hydrophilicity of solid surfaces
• Biological application such as the detection and characterization of proteins
• Adsorption / Wettability of powder and pharmaceutical products
• Analysis of plasma treatment to increase the wettability of polymers surfaces

Typical Application

• Semiconductor applications
• Detection of organic contamination on PCB and electronic components
• Evaluation of cleanliness / treatment / coating processing
• Hydrophobicity and hydrophilicity of solid surfaces
• Biological application such as the detection and characterization of proteins
• Adsorption / Wettability of powder and pharmaceutical products
• Analysis of plasma treatment to increase the wettability of polymers surfaces

 Technical Specification
