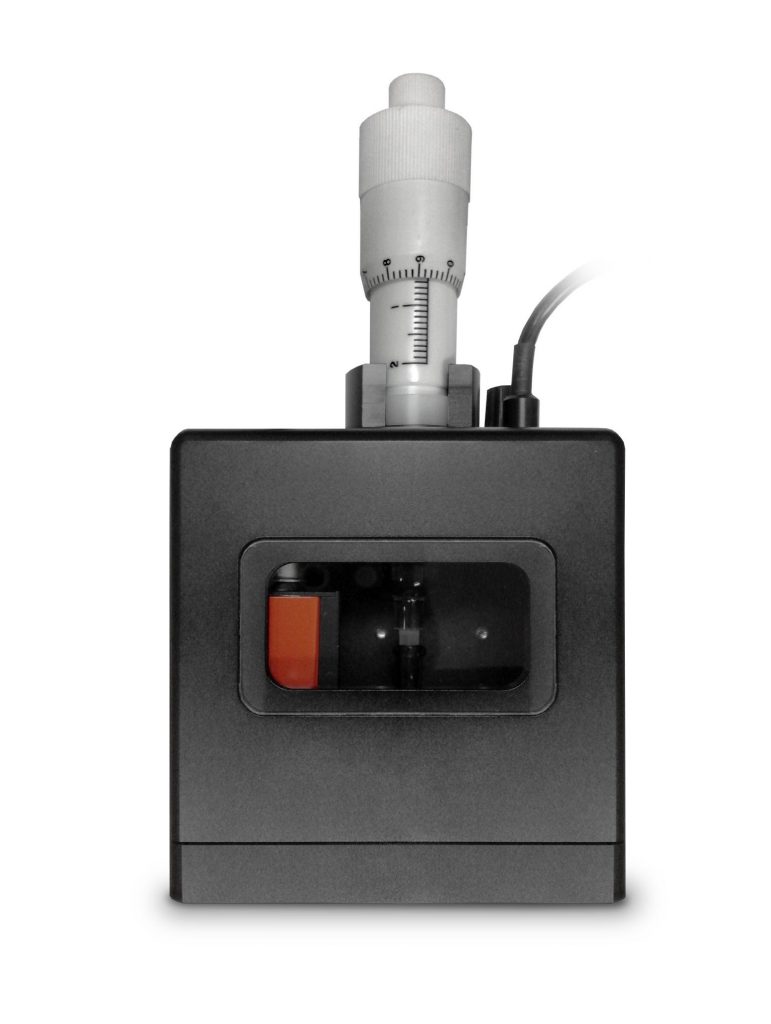

Phoenix –I Portable Contact Angle Analyzer
Why using Portable Contact Analyzer?
- When the sample size cannot be prepared/ cut to fit on the stage of general purpose contact analyzer
- Not constraint by the sample size and shape
- Bringing the analyzer to the sample instead of bringing the sample to the analyzer
The Phoenix series is designed to offer the flexibility required for QA. R&D and engineering process development. The Phoenix-I is a quite simple and virtually any measure size without sample cutting sample cutting preparation. Light-weight means simple control device and simple handling. Phoenix-I adopted USB type camera. Easily connect to laptop and desktop computer with Surfaceware software.
Key Features
- Software working on window XP, window 7 32bit
- Preview function for rapidly capture image
- Accuracy ± 0.1 °
- Contact angle measurement range: 3- 180 °
- No required cutting sample
- 2 modes of manual baseline
- 4 modes of capture image
- Data export to Microsoft Excel
- High resolution and powerful image capture system
- Available to connect to notebook or desktop PC via USB port
- Semiconductor applications
- Detection of organic contamination on PCB and electronic components
- Evaluation of cleanliness / treatment / coating processing
- Hydrophobicity and hydrophilicity of solid surfaces
- Biological application such as the detection and characterization of proteins
- Adsorption / Wettability of powder and pharmaceutical products
- Analysis of plasma treatment to increase the wettability of polymers surfaces
Technical Specification
| Sample Size ( mm) | Virtually Unlimited |
| Max. Measuring speed | 30 FPS |
| Light Source | LED |
| Contact Angle | 3° to 180° |
| Accuracy | ±0.1 ° |
| Connecting Type | USB |
| Operating System | Window XP, Window 7 |
| Dimension (mm) | 90 (H) excluding syringe height x90(W)x 50(D) |
