Solid Phase Extraction

Performing Solid Phase Extraction (SPE) manually can be time consuming and nerve-racking, especially when recovery and reproducibility are lacking due to sample variability. If Solid Phase Extraction (SPE) can be reliably automated, it becomes a much more efficient and reproducible process.

The GERSTEL Multi Purpose Sampler (MPS) with Automated SPE Option for standard cartridges provides several benefits compared with manual Solid Phase Extraction:

  • Improved recovery, precision and reproducibility
  • Maximized sample throughput by performing SPE during GC or LC analysis of the preceding sample
  • More than 50% time saving for overall analysis, compared to manual processing

Following the SPE clean-up steps, the MPS can introduce the sample extract directly to an LC/MS or GC/MS system for analysis. As an alternative, the MPS WorkStation is used as a stand-alone sample preparation robot, preparing samples for multiple LC/MS or GC/MS systems in your laboratory.

The GERSTEL SPE enables automated sample preparation and analysis even for complex samples. Samples are prepared in a simple and safe manner combining accurate results with high throughput. The complete system is easily and efficiently controlled from the Agilent ChemStation software or from the GERSTEL MAESTRO software.
Sample preparation steps are selected by mouse-click from a simple pull-down menu and can easily be combined with automated SPE:

  • Dilution and standard addition
  • Automated weighing, centrifugation and sonication
  • Derivatization before or after SPE
  • Heated or cooled conditioning and mixing



Solid-Phase-Extraction-SPE Brochure

Product Specifications

Uses Sample preparation and sample introduction system for automated Solid Phase Extractio (SPE) based on standard cartridges. Conditioning, extraction and elution is performed in a sealed system. An automated concentration can be selected for improved detection limits. SPE can be combined with introduction of the eluate to a GC or LC system or performed off-line for subsequent analysis of the SPE eluate using a separate GC/MS or LC/MS system.
System Configuration
  • compatible with most standard GC and LC systems
  • automated operation based on the GERSTEL MultiPurpose Sampler (MPS)
  • GERSTEL Thermal Desorption Unit TDU is used for thermal desorption analytes
  • GERSTEL solvent filling station included

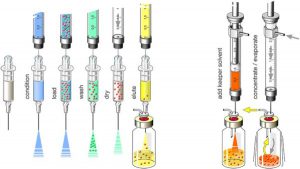

Automated SPE steps
  • cartridges conditioning
  • sample loading
  • cartridge drying
  • elution
  • eluate evaporation and analyte concentration
  • sample reconstituition
Cartridge types
  • standard SPE cartridges with GERSTEL transport adapter
  • 1 mL, 3 mL and 6 mL
  • height of packing inclusive of frit
    • 4.5 … 23 mm for 1 mL and 3 mL cartridges
    • 9.5 … 23 mm for 6 mL cartridges
  • more detailed information is available in separate flyer
Capacity
  • 72 x 6 mL cartridges
  • 98 x 3 mL cartridges
  • 98 x 1 mL cartridges
Sample vials 2, 4 or 10 mL
Sample volume
  • max. 8 mL per vial
  • a sample can be split up into several vials
Eluate collection vials 2, 4 or 10 mL
Syringes
  • 1 mL or 0.25 mL, with gas connection
  • syringe volume does not limit the injection volume, multiple injections are possible
Injection volume
  • 10% or more of total syringe volume
  • in combination with LC, smaller sample volumes can be introduced using injection valves with small sample loops
Loading speed 10 … 250µL/s
Evaporation Temperature ambient … 120oC
Agitation speed 250 … 750 rpm
Control
  • in combination with the GERSTEL MAESTRO Software, integrated in the Agilent® Technologies ChemStation software or operated in stand-alone mode
  • only one method and one sequence table required for the complete system including GC/MS or LC/MS systems when integrated in the ChemStation Software
  • sample preparation steps can be selected by mouseclick from a drop-down menu
  • SPE and chromatographic analysis of the preceding sample are performed simultaneously ensuring optimal productivity and throughput
Operating conditions
  • 15 … 35oC
  • relative humidity max. 50 – 60%, non-condensing
  • max. 4615 m above sea level
Storage Conditions
  • -20 … 50oC
  • relative humidity max. 50 – 60%, non-condensing
  • max. 4615 m above sea level

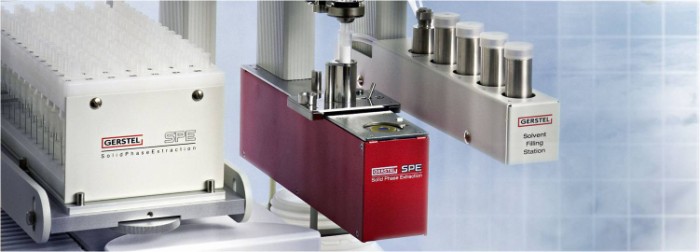

SPE Station
  • dimension 22.5 x 9 x 26 cm (H x W x D)
  • weight 1.7 kg
