MultiPosition Evaporation Station
Fully automated solvent evaporation integrated with your sample preparation

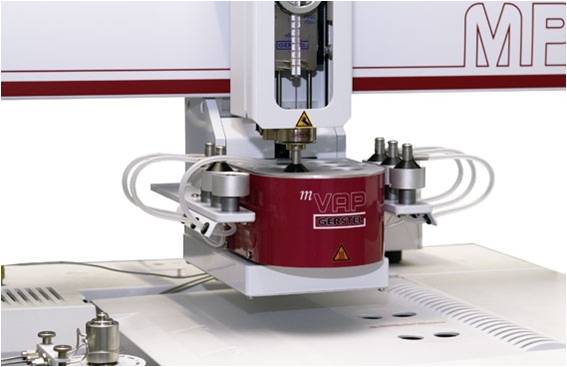

The GERSTEL Multi-Position Evaporation Station (mVAP) performs solvent evaporation enabling automated sample concentration for lower detection limits as well as solvent exchange for improved chromatography and LC/MS ionization.
mVAP is an option for the GERSTEL MultiPurpose Sampler (MPS). Up to 196 samples in a standard autosampler vials can be concentrated in batches of up to six. Concentration is performed at user defined temperature, agitation and vacuum levels enabling highly flexible operation with mild temperature conditions and limited analyte loss.
Concentration in the mVAP can be combined with a wide variety of sample preparation and clean-up techniques such as SPE, dispersive SPE (DPX), liquid/liquid extraction or filtration with the significant benefit of automated injection of the concentrated sample into a GC/MS or LC/MS system. Every step is controlled by mouse-click using the MAESTRO PrepBuilder. Just one method and one sequence table is needed for the entire process including GC/MS or LC/MS analysis.
mVAP features & benefits:
Efficient concentration of extracts and solutions under controlled conditions
- Improved limits of detection
- Solvent exchange for GC/MS or LC/MS analysis
Concentration in combination with all samples preparation techniques
- SPE and dispersive SPE (DPX)
- Liquid/liquid extraction and membrane extraction (MASE)
- Centrifugation and Filtration
Reliable results
- Reproducible sample preparation through uniform processing of all samples
- User defined mild evaporation conditions enable maximized analyte recovery
- Condensation-free and safe removal of solvent vapours
- Contamination-free through use of sealed autosampler vials
- Reduced staff exposure to potentially toxic solvents
Maximum efficiency
- Concentration directly from elution/sample vials
- No need for cumbersome manual liquid transfer
- Automated loading of 2 mL, 4 mL and 10 mL vials into mVAP
- Parallel evaporative concentration of up to six samples
- Controlled evaporation through user defined temperature, vacuum and agitation levels
- Efficient PrepAhead overlapping of sample preparation and analysis
- Optimal utilization of the complete analysis system, best possible ROI
Intuitive control by mouse-click using MAESTRO software
- Integrated control of complete process including all samples preparation steps and GC/MS or
LC/MS analysis
- Only one sequence table required
- MAESTRO integration provides single method control
- Interfaces with major chromatography vendors’ software packages
