Gerstel Headspace

Headspace

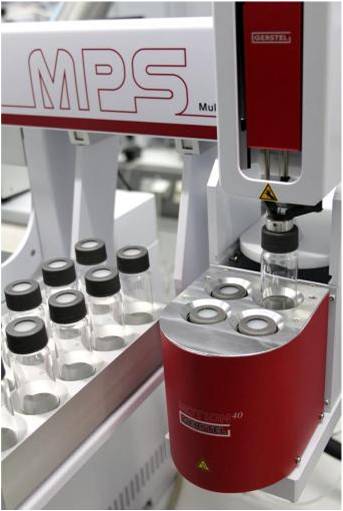

The GERSTEL MPS configured as Headspace Autosampler provides the analyst with a highly productive tool for performing GC Headspace analysis. The MPS is perfectly suited for routine analysis and for R&D applications that demand a higher degree of flexibility.

Due to the modular concept, the MPS easily adapts to individual requirements in the laboratoty:

  • The Cooled Agitator spans a temperature range from 10oC to 200oC enabling analysis of thermally labile samples such as foods.
  • Headspace sampling from the tray combined with thermostated trays provides capacity enhancement
  • The Headspace purge tool enables true MHE analysis and method validation
  • The MPS Agitator Stirrer (AS) operates in agitation mode or in stirring process prior to headspace sampling, thereby improving throughput and reproducibility. The stirring mode is especially useful for Headspace SPME applications.

 Product Specifications

Vials 10, 20 or 100 mL, depending on configuration
Syringe
  • 1, 2.5 or 5 mL
  • heated syringe holder for all syringes
Syringe Temperature 35 … 150°C, in increments of 1°C
Injection Volume 100 … 2500 µL, depending on syringe volume
Speed
  • injection speed 10 … 1000 µL/s, depending on syringe volume
  • fill speed 10 … 1000 µL/s, depending on syringe volume
Needle Penetration
  • in sample vial 1 … 45 mm
  • in CIS injector 20 … 45 mm
Syringe Cleaning 0 … 60 min flush time with inert gas
Incubation
  • temperature max. 200°C
  • incubation time max. 24 h
Sampling
  • from agitator/incubator
  • directly from tray
Precision <1.0% RSA
Carryover <0.05%
Specials with MAESTRO Software only
  • sample pre-pressurization
  • multiple headspace sample enrichment MHSE
  • multiple sample prep-ahead
