Cooled Injection System

Internationally the most frequently used PTV-type universal inlet, with patented septumless sampling head.

Gas chromatographic analysis is now more versatile, reproducible and has lower detection limits than ever before, thanks to temperature programmed sample injection using GERSTEL Cooled Injection System.

The GERSTEL CIS provides two essential system-functions:

  • Universal injection system for all injection techniques: split, splitless, on-column and large-volume up to 1000 µl.
  • Cryotrap enrichment system in combination with sample preparation systems, for example, the GERSTEL Thermal Desorption System TDS, the GERSTEL Dynamic Headspace DHS, the GERSTEL Thermal Desorption Unit TDU or the GERSTEL MultiPurpose Sampler MPS.

The CIS is easily and conveniently controlled from the GERSTEL MAESTRO Software – stand alone or through the Agilent Technologies ChemStation software.

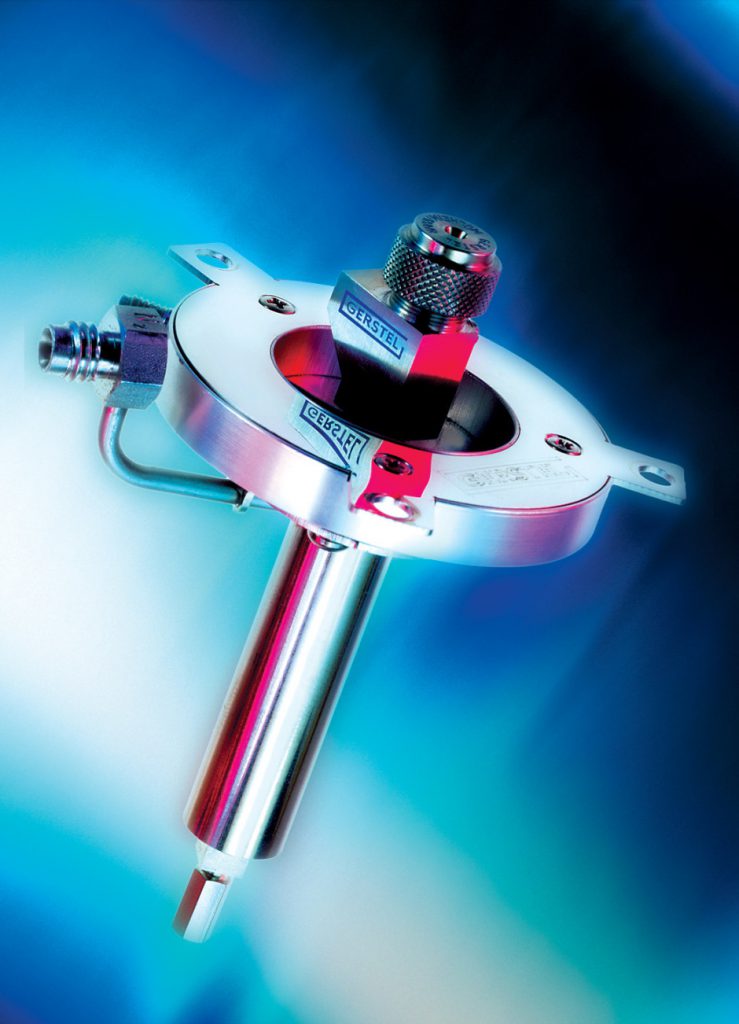

Cooled-Injection-System-CIS

Product Specifications

CIS4 & CIS6

Inlet Type
  • programmable temperature vaporizing inlet PTV
  • compatible with Agilent® Technologies GC 6850, 6890 and 7890
Cooling Options
  • LN2 cooling
  • LCO2 cooling
  • cryostatic cooling
  • peltier cooling, patented
Minimum Temperature (at max. 70oC oven temperature)
  • -150oC (with LN2 cooling) or -180oC (optional, with LN2 cooling)
  • -70oC (with LCO2 cooling
  • -40oC (with GERSTEL cryostatic cooling)
  • +10oC (with peltier cooling)
Temperature Program
  • 2 temperature ramps
  • heating rate for CIS4
    • 0.5 … 12oC/s (-150 … 450oC)
    • 16oC/s up to 150oC in fast heating mode in increments of 0.1oC/s
  • heating rate for CIS6
    • 0.5 … 12oC/s (-150 … 650oC)
    • 20oC/s up to 150oC in fast heating mode in increments of 0.1oC/s
  • initial temperature – -150 … 400oC (650oC in CIS6)
  • 1. hold temperature – -150 … 550oC (650oC in CIS6)
  • 2. hold temperature – 0 … 550oC (650oC in CIS6)
  • hold time max. 60 min
Dimesions
  • standard dimensions for AT 6850/6890/7890 inlet body
  • fits into front and back injector position
Control
  • based on the Controller C506
  • in combination with the GERSTEL MAESTRO Software, integrated in the Agilent® Technologies ChemStation Software or operated in stand-alone mode
  • simplet set-up of temperature program
  • graphical display of temperature program
  • only one method for the complete system including GC/MS when integrated in ChemStation software
Septumless sampling head SLH
  • sealing nut with Kalrez® sealing
  • no septum bleeding
  • 1/16″ gas connection, stainless steel
  • optional septum head
Glass Inlet Liners
  • 3 x 2 x 71 mm (OD x ID x L)
  • 3 x 1 x 71 mm (OD x ID x L) only for CIS4
  • straight or baffled
  • empty or packed
  • made if quartz or borosilicate glass
  • standard or deactivated
  • separate liner flyer provides more detailed information

ControllerC506

Operating Voltage
  • 230 VAC, 50/60 Hz or
  • 115 VAC, 50/60 Hz or
  • 100 VAC, 50/60 Hz
Power Consumption 500 Watt max.
Pneumatics
  • Agilent EPC Control
  • pressure – 0 … 100 psi
  • gas flow
    • 0 … 1000 mL/min He or H2
    • 0… 200 mL/min N2 (typically 10 … 200 mL/min)
  • 1/16″ split line, stainless steel
Injection modes
  • split/splitless
  • solvent venting
  • on-column (optional)
  • large volume
  • basic cryo-trapping module for all GERSTEL sample introduction techniques
Automation
  • compatible with GERSTEL MPS 2 and all standard autosamplers for Agilent® Technologies GC 6850/6890/7890
  • automated liner exchange with ALEX option in combination wither GERSTEL MPS 2
Column Connection
  • for standard columns ID 0.1 … 0.53 mm
  • maximum outer diameter 0.8 mm
  • based on GRAPHPACK-2M sealing technique
Fuse
  • T3.15 A 230 V or
  • T6.3 A 100/115 V
protective Class Class 1 according to IEC 536 (protective ground)
Surge Category Category II
Regulatory Certifications & Standards
  • DIN EN 61010-1/A2:1996
  • DIN EN 61326:2004-05
  • IEC 61010-1:1990/A1:1992/A2:1995
  • UL STD 3101-1;93
  • CAN/CSA C22.2 NO.1010.1-92
Interfaces
  • 1 x 9 pin sub-D for cryo valves
  • 1 x 9 pin sub-D for pneumatics valves
  • 2 x 9 pin sub-D, remote control
  • 1 x Ethernet/LAN
  • 1 x RS 232
  • prepared for 1 x USB
  • 4 slots to control GERSTEL modules
Operating conditions
  • 15 … 35oC
  • relative humidity max. 50 – 60%, non-condensing
  • max. 4615 m above sea level
Storage conditions
  • -20 … 50oC
  • relative humidity max. 50 – 60%, non-condensing
  • max. 4615 m above sea level
Dimensions (H x W x D) 39 x 13.5 x 31 cm
Weight approx. 15 kg
