Gerstel Agitators / Incubators

Agitators / Incubators

Reliability and reproducibility of any sample preparation depends on exact thermostating and efficient mixing of samples, solvents and reagents. For any application GERSTEL offers the right Agitator for the MultiPurpose Sampler MPS.

Standard-Agitator
The Standard-Agitator for the GERSTEL MultiPurpose Sampler MPS provides efficient mixing and thermostating up to 200 °C.

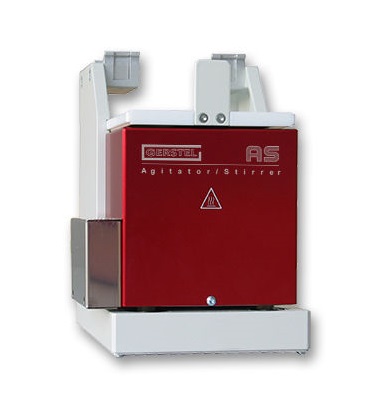

Agitator-Stirrer AS
The Agitator-Stirrer AS for the GERSTEL MultiPurpose Sampler MPS can either operate in agitation or stirring mode using conventional magnetic stir bars. Stirring helps efficiently mixing heterogeneous or viscous samples, accelerates equilibration for headspace sampling and extends the lifetime of SPME fibers.

Cooled Agitator
Some analytes degrade at higher temperatures, biological samples may undergo natural decomposition. In many cases it is necessary to perform transformations under reduced temperature. The Cooled Agitator for the MultiPurpose Sampler MPS gives access to a temperature range from 10 °C up to 200 °C and is therefore perfectly suited for thermal labile samples.

Product Specifications

Standard Agitator
  • 6 positions
  • 2, 10 and 20 mL vials
  • temperature range 35 … 200oC, in increments of 1oC
  • agitation speed 250 … 750 rpm (± 15%)
  • dimensions 180 x 115 x 185 mm (H x W x D)
  • weight 2.2 kg
Agitator for 2 mL Vials
  • 15 positions
  • 2 vials
  • temperature range 35 … 200oC, in increments of 1oC
  • agitation speed 250 … 750 rpm (± 15%)
  • dimensions 180 x 115 x 185 mm (H x W x D)
  • weight 2.2 kg
Agitator for 40 mL
  • 2 positions
  • 40 mL vials
  • temperature range 35 … 100oC, in increments of 1oC
  • agitation speed 250 … 750 rpm (± 15%)
  • dimensions 245 x 115 x 230 mm (H x W x D)
  • weight 3.4 kg
Incubators
  • 2 positions
  • 100 mL vials
  • temperature range 35 … 180oC, in increments of 1oC
  • dimensions 212 x 128 x 336 mm (H x W x D)
  • weight 6.2 kg
Cooled Agitator
  • 6 positions
  • 2, 10 and 20 mL vials
  • temperature range 10 … 200oC, in increments of 1oC
  • with peltier cooling UPC
  • controlled by AUX controller 163
  • dimensions 180 x 115 x 185 mm (H x W x D)
  • weight 2.2 kg
Agitator Stirrer
  • 6 positions
  • 20 mL vials
  • temperature range 35 … 120oC, in increments of 1oC
  • operation in agitation or stirring mode selectable
  • agitation speed 250 … 750 rpm (± 15%)
  • stirring speed 599 … 1500 rpm (± 15%)
  • dimensions 180 x 115 x 185 mm (H x W x D)
  • weight 2.2 kg
